Marine scanning of engine rooms and technical spaces
3D documentation of engine rooms and pump rooms for space verification, technical records and future interventions.
Marine technical spaces involve tight access, dense equipment layout and minimal tolerance for error. 3D capture of these areas creates a safe and accurate base for engineering review, piping documentation and retrofit preparation.
Indicative scope
- Capture of engine rooms, piping routes and auxiliary ship spaces.
- Digital documentation for retrofit or engineering review.
- Use of the point cloud to prepare works more safely and efficiently.
Why it matters
In marine work, accurate as-built dimensions save time, reduce onboard risk and improve intervention planning before installation starts.
Indicative deliverables
- Organized photographic and digital project archive.
- Scanning data, mesh or point cloud depending on the case.
- A usable base for CAD, reverse engineering or technical documentation.
Indicative project images

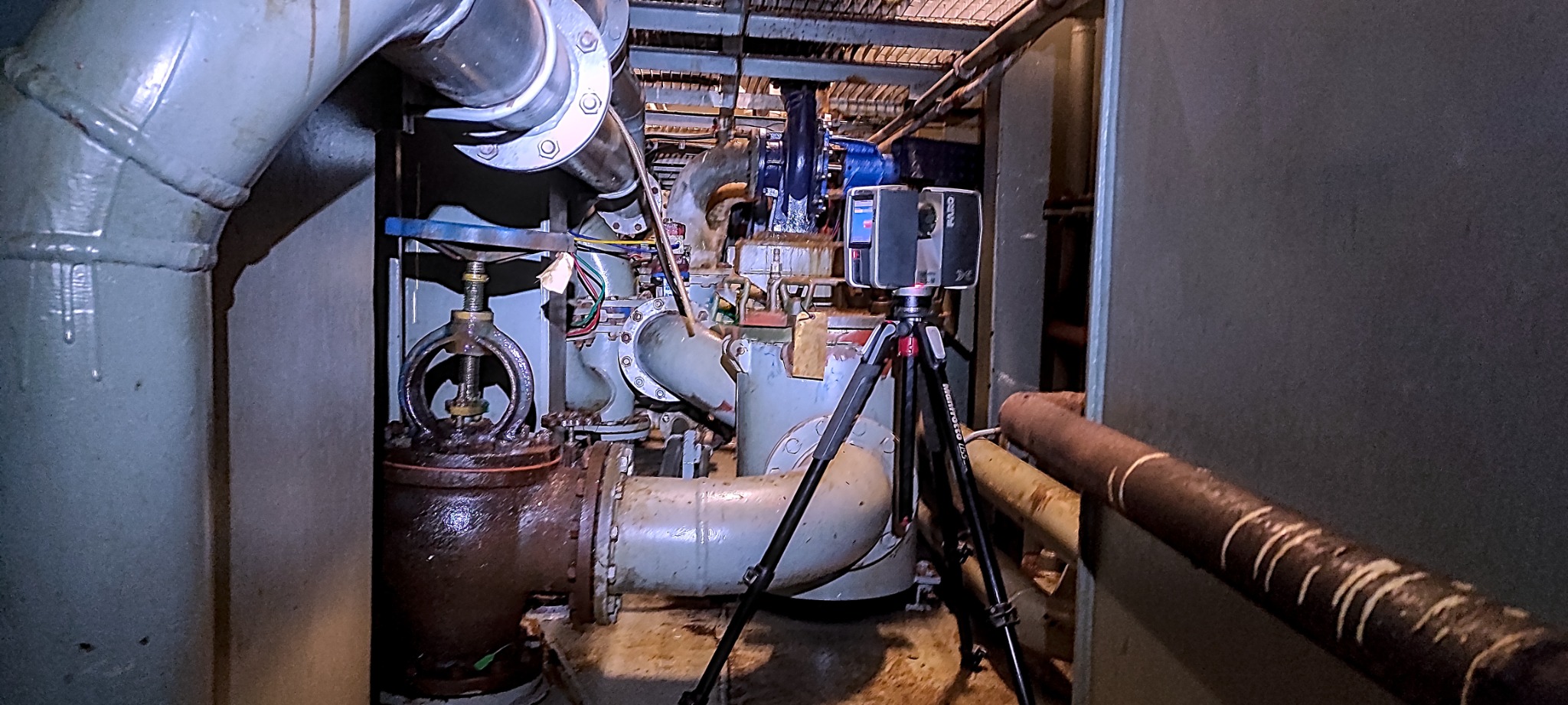

3D documentation of engine rooms and pump rooms for space verification, technical records and future interventions.
