Freeform-part scanning and deviation inspection
Applications for complex or organic shapes where handheld scanning and deviation mapping provide actionable technical insight.
Not all parts are prismatic or easy to inspect with conventional methods. On freeform surfaces and complex components, 3D scanning captures the real geometry quickly and creates a base for reverse engineering or quality inspection.
Indicative scope

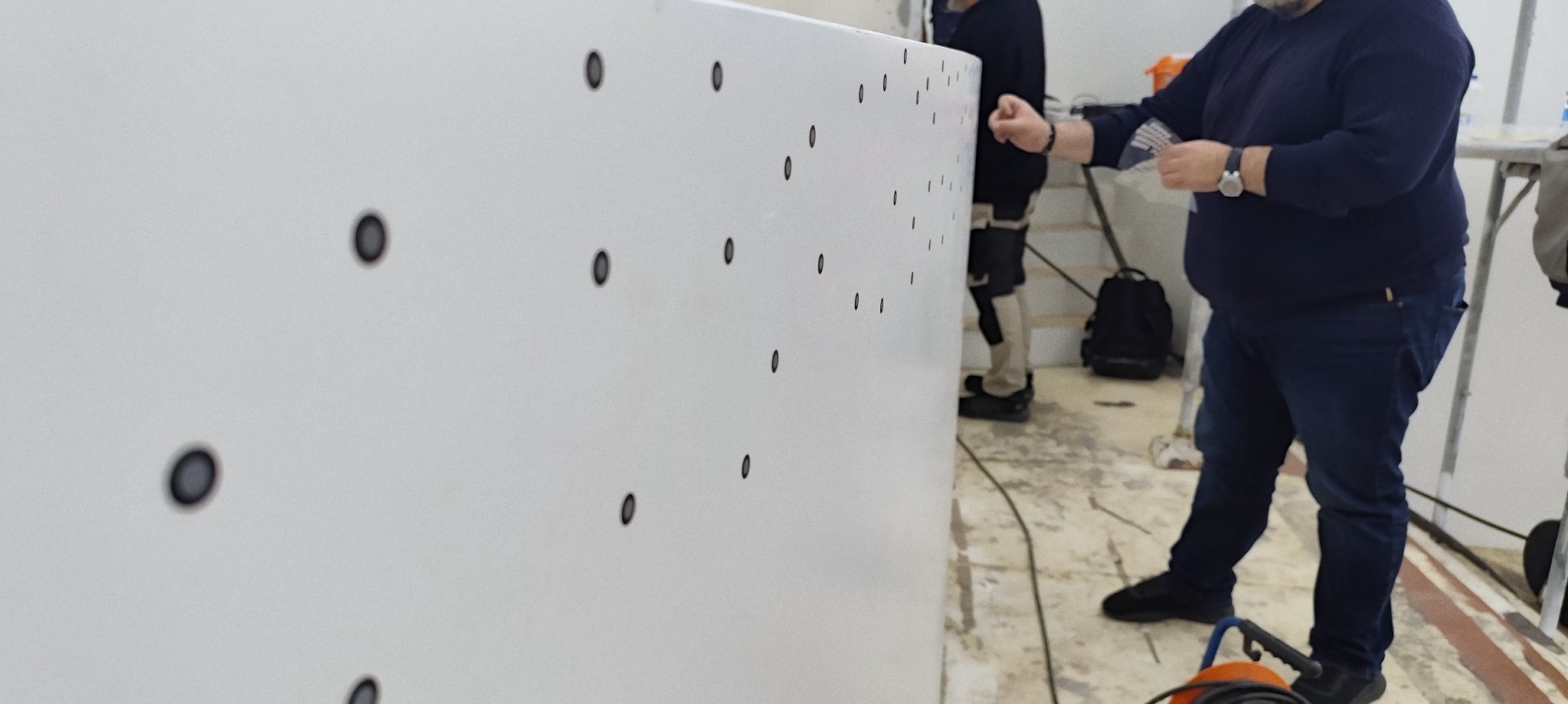

- Surface and target preparation for more stable acquisition.

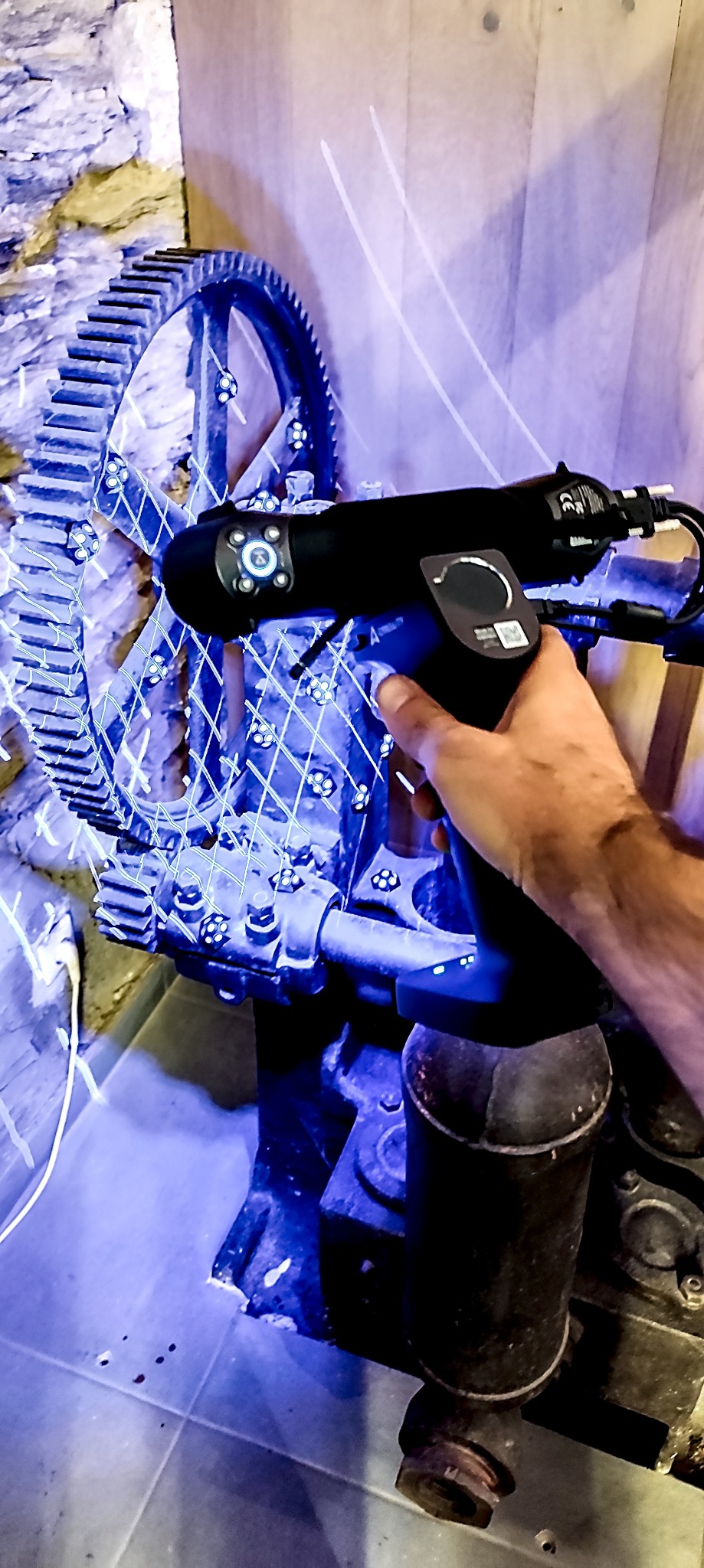

- Handheld scanning for full geometric coverage.

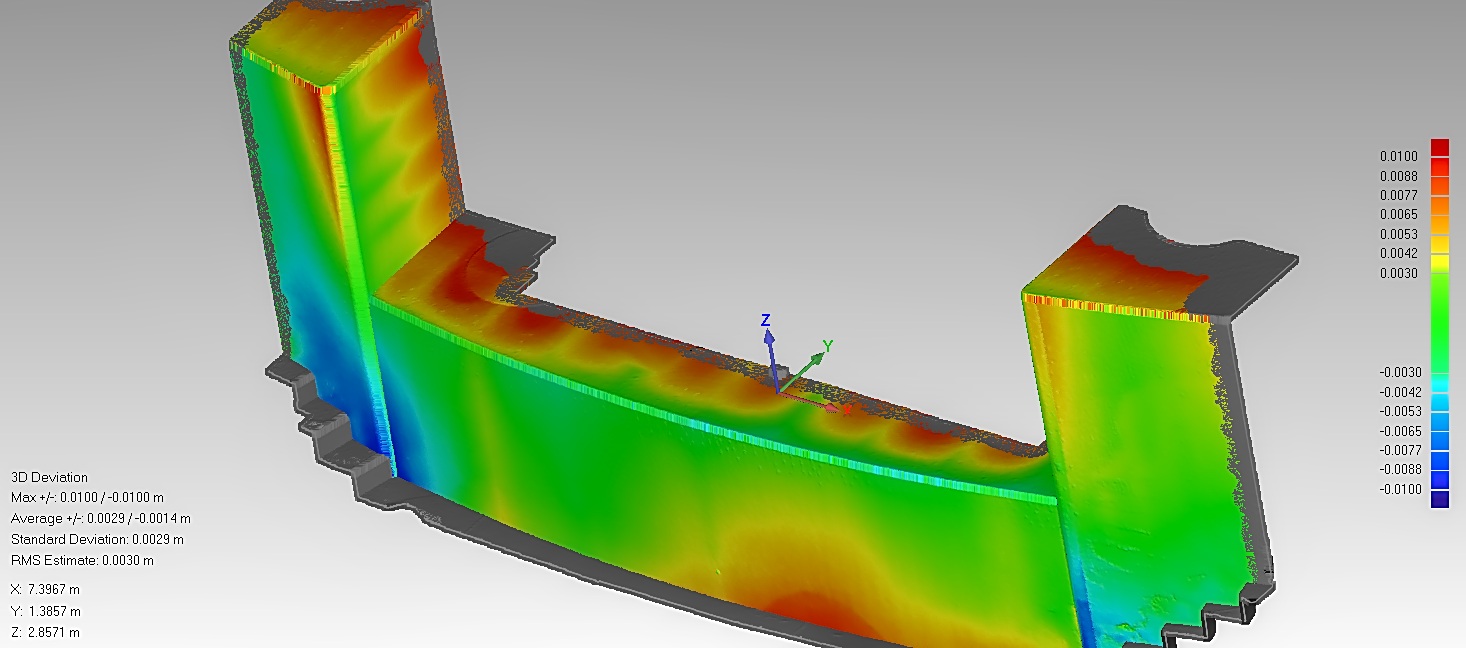

- Deviation mapping or export for CAD / reverse engineering.
Practical value
This method is especially useful when drawings are missing, the component is worn or the real geometry must be checked without slow manual measurements.
Indicative deliverables
- Organized photographic and digital project archive.
- Scanning data, mesh or point cloud depending on the case.
- A usable base for CAD, reverse engineering or technical documentation.
Indicative project images
Applications for complex or organic shapes where handheld scanning and deviation mapping provide actionable technical insight.
